USI'S GAS DETECTOR INCLUDES SENSOR(S) AND CONTROLLER

To order the desired model, use the following method

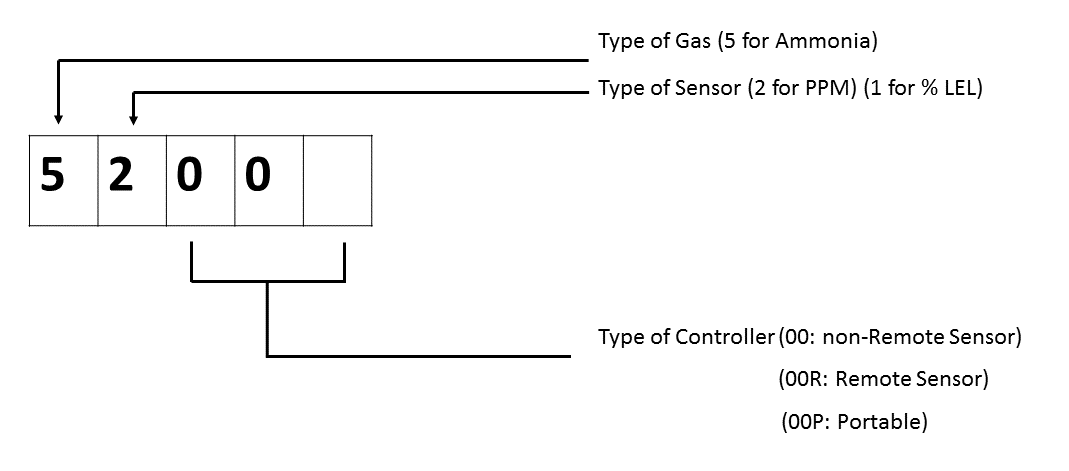

(1) SINGLE CHANNEL WALL MOUNT AND PORTABLE UNIT

(A) To Measure PPM range (Solid-State Sensor)

Chlorine0200
Hydrogen Sulfide2200
Sulfur Dioxide3200
Carbon Dioxide4200
Ammonia5200
Hydrocarbons (no methane response)6200
Ethylene OxideET 6200
ChlorohydrocarbonsCLH 6200
Hydrogen7200
Methane (Combustible Gases)8200
Freon (specify)9200
FormaldehydeFO 6200

(B) To Measure % LEL range (Catalytic Sensor)

Combustible gases8100
Hydrogen (specific)7100
Hydrocarbons (no methane response)6100
Ammonia (specific)5100
Acetylene (specific)TB 6100
Ethylene (specific)DB 6100

Example:

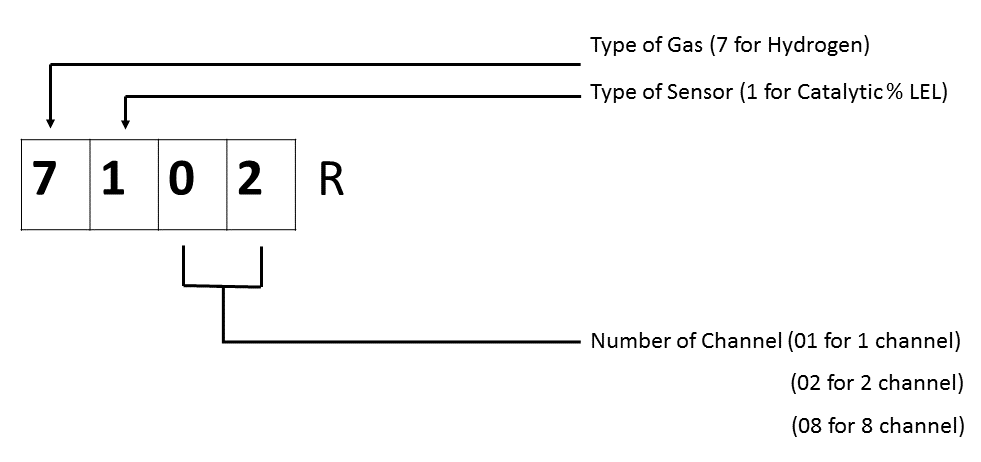

(2) SINGLE CHANNEL and MULTI-CHANNEL MONITOR IN NEMA-4 ENCLOSURE

(Same as above Sensor and Gases)

Optional:Dual Alarms (Low and High)
with three relay contacts (Low, High, Fail) - add "2AL" to the end of the model number. (not available for Portable unit)
Optional:Digital display model - add "D" to the end of the model number. (not available for 2-channel or more)
Optional:4-20mA, or 0-1VDC recorder output - add "4-20mA, or 0-1VDC"
to the end of the model number.
(4-20mA not available for Portable unit)
Example:5200/2AL/D/4-20mA
8204R/2AL/4-20mA
7100R/2AL/D/4-20mA

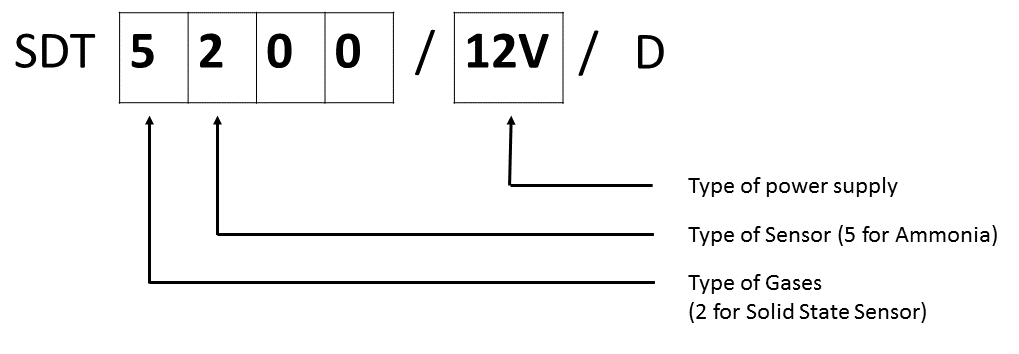

(3) SENSOR DATA TRANSMITTER DETECTOR

(Same as above Sensor and Gases)

Type of Supply:12V use 12 VDC
24V use 24 VDC
115V use 115 VAC
220V use 220VAC
Example:5200/12V/D

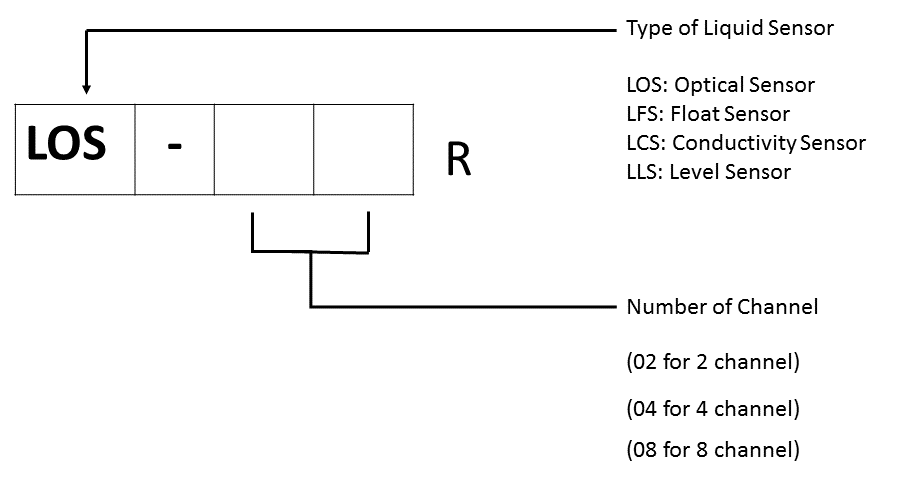

(4) LIQUID LEAK DETECTOR/MONITOR IN NEMA-4 ENCLOSURE

Example: LFS-04R
