Click below to view our selection of gas detection products
Wall-mount Gas Detector/Monitor
Single and Multichannel Gas Monitor / Alarm in Nema 4 Enclosure
Two Stage Alarms in Single and Multichannel Unit - Controller
Sensor Data Transmitter (SDT) Gas Detector

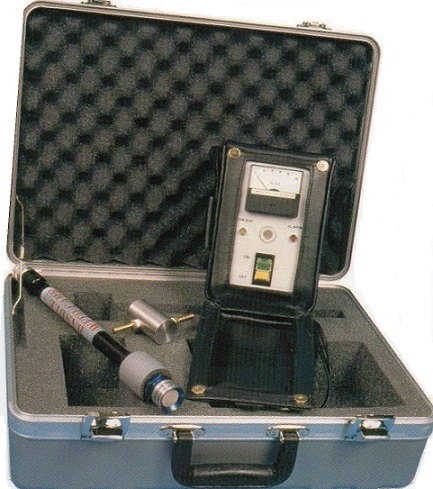

Portable Gas DetectorThe portable toxic gas or combustible gases detector with audio/visual alarms and meter display is ideal for confined space monitoring. This piece of gas detection equipment is compact, light weight, and battery-operated. With built-in charger and Ni-Cad batteries allows the unit 10 hours of continuous operation. The handheld gas monitor with the sensor (no mechanical pump) and 5 feet of wire provides local area gas measuring. Analog meter, or 4-digit large LCD digital display indicates PPM or % LEL. Shoulder held carrying case and instrument case are also included. 0-1 VDC output for data acquisition is optional. |
 |
Portable Gas DetectorThe portable toxic gas or combustible gases detector with audio/visual alarms and meter display is ideal for confined space monitoring. This piece of gas detection equipment is compact, light weight, and battery-operated. With built-in charger and Ni-Cad batteries allows the unit 10 hours of continuous operation. The handheld gas monitor with the sensor (no mechanical pump) and 5 feet of wire provides local area gas measuring. Analog meter, or 4-digit large LCD digital display indicates PPM or % LEL. Shoulder held carrying case and instrument case are also included. 0-1 VDC output for data acquisition is optional. |
|
|
Rugged, compact, light weight with shoulder carrying case and instrument case
Uses a UL approved solid state sensor with 1 year warranty (estimated life over 10 years)
Audio/visual alarms
Low battery warning light
Accurate Analog or Digital reading for PPM or %LEL
Rechargeable Ni/Cad Battery and built in battery charger
Fast warm up time 3-4 minutes and response time
Sensor high poison resistant to sulphur, lead, silicone and halogenated compounds
115, or 220 V AC line charge
| Dimensions: | 8"H x 5"W x 3"D |
| Operating Temp: | -10F to +150F |
| Meter Display: | Analog PPM or % LEL; or Optional 4 digits LCD indicates PPM or % LEL |
| Power: | 3.6VDC Ni-Cad Battery |
| Power Usage: | 2.0 Watt Maximum |
| Operating Hours: | 10 hours continuous (minimum) |
| Battery Signal: | Visual Yellow LED indicates low battery |
| Battery Charger: | Built in charger, 115 VAC or Optional 220 VAC |
| Panel Control: | Zero and Span Adjustments |
| Alarms: | Visual Red LED, Audio Buzzer 75dB |
| Panel Indicators: | Power On (Green LED), in-charge (Orange LED) |
| Weight: | 2.0 lbs (13 lbs in case) |
